12.6 inch 1920x515 eDP IPS LCD Screen NV126B5M-N41 with 2 Mini HDMI & Micro USB Controller Board - DIY Replacement Display for PC, Laptop, Raspberry Pi Projects & Custom Monitor Builds

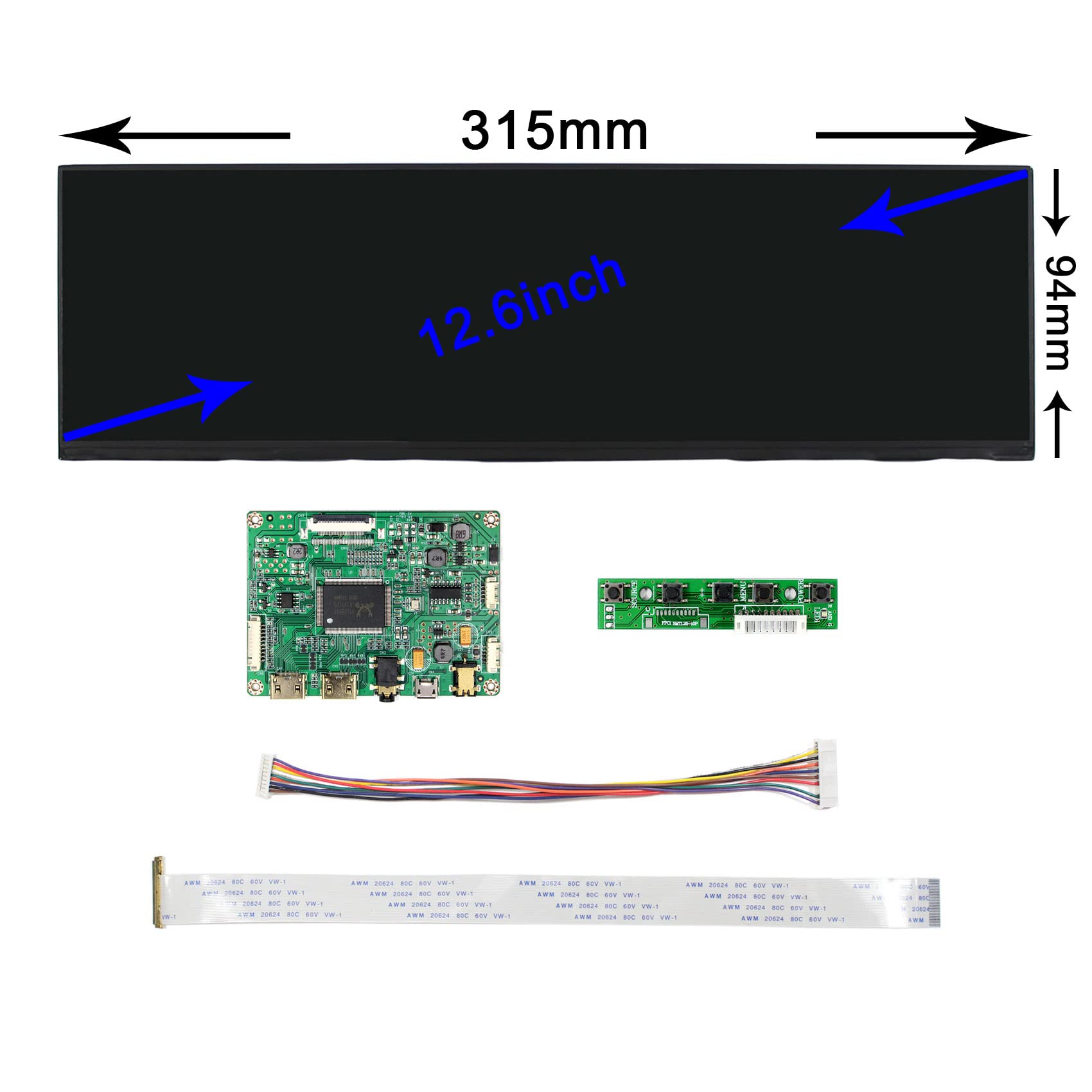

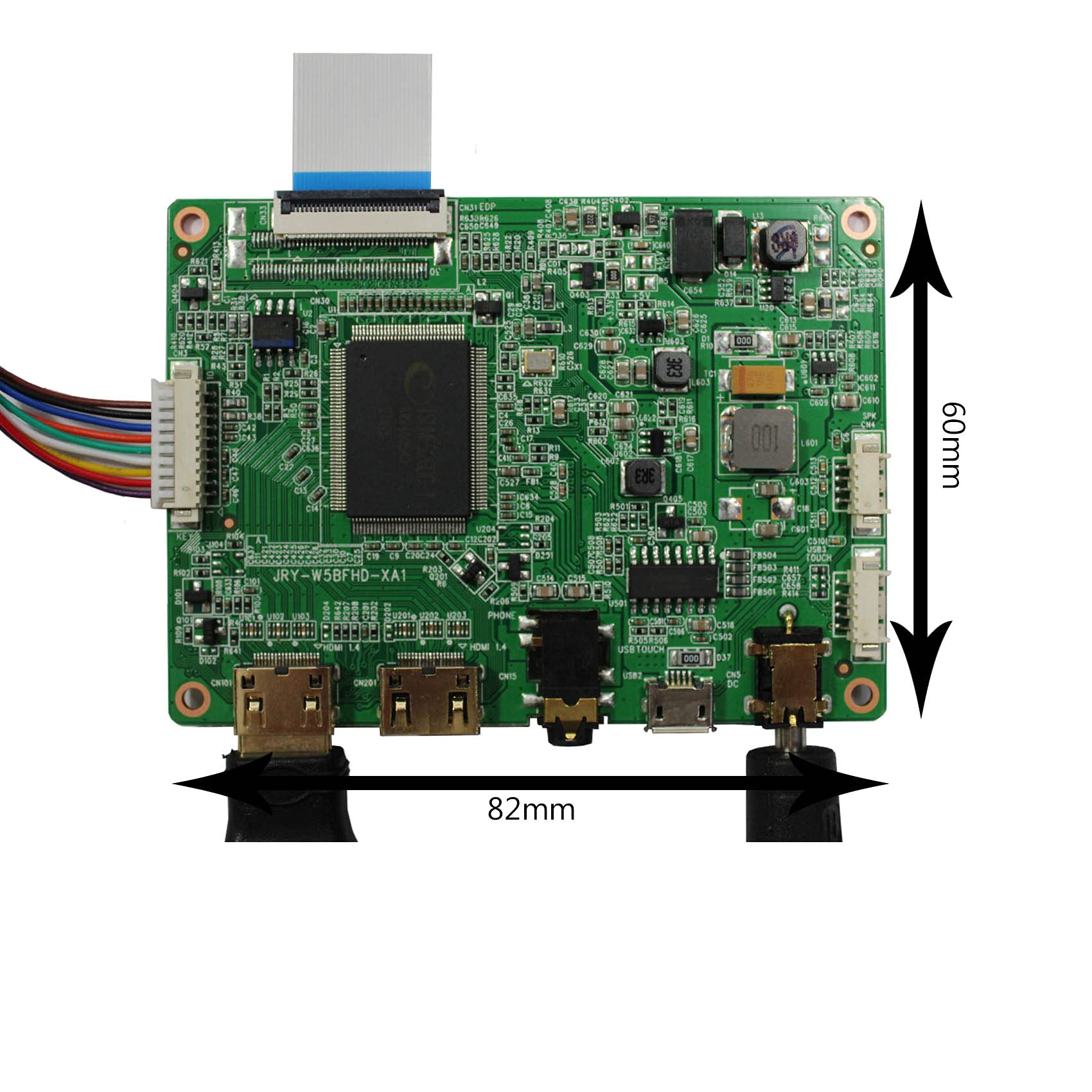

LCD Controller Board:HDMI Board Work for 30Pin EDP LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <0.3WAudio Input: 2HDMI MiniAudio Output: EarphoneOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 82mm x 60mm x 5mm12.6" NV126B5M-N41 1920X515 LCD Screen:Display New Mode ADS, Normally Black, TransmissiveResolution 1920RGB)×515Outline Size 315.61×94.02×5.3(H×V×D)Display Area 309.31×82.97 (H×V)Brightness 250 cd/m² (Typ.)Contrast Ratio 1200:1 (Typ.) (TM)Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (2 Lanes), Connector, 40pins Backlight WLEDInput Voltage 3.3V (Typ.)Packing list:1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1 1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen1× Signal Cable1× Keyboard With CableWhen use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.Micro USB output 5Vdc 500mA. When use Micro USB as input. Power Supply Input Voltage 5Vdc.When use 5Vdc as input. Power Supply Input current more than 2A.When use 12Vdc as input. Power Supply Input current more than 1A.

12.6" wide EDP IPS screen delivers 178° full view angle.lightweight and thin ,Outline Size 315.61×94.02×5.3(H×V×D)mm,Display Area 309.31×82.97 (H×V)mm,Resolution 1920X515,Contrast Ratio 12001,Transmissive,offer the accurate and vivid image.60HZ refresh rate show the real image of the game/scene/work perfectly and quickly.

LCD Controller Board Video input 2 mini HDMI,Audio Output Earphone (8ohm 2W PH1.25 connector Speaker ),Please use in an insulated environment.

Input Power Supply12V DC more than 2A ,Port size 5.5x2.1mm, pls prepare power adapter by yourself.

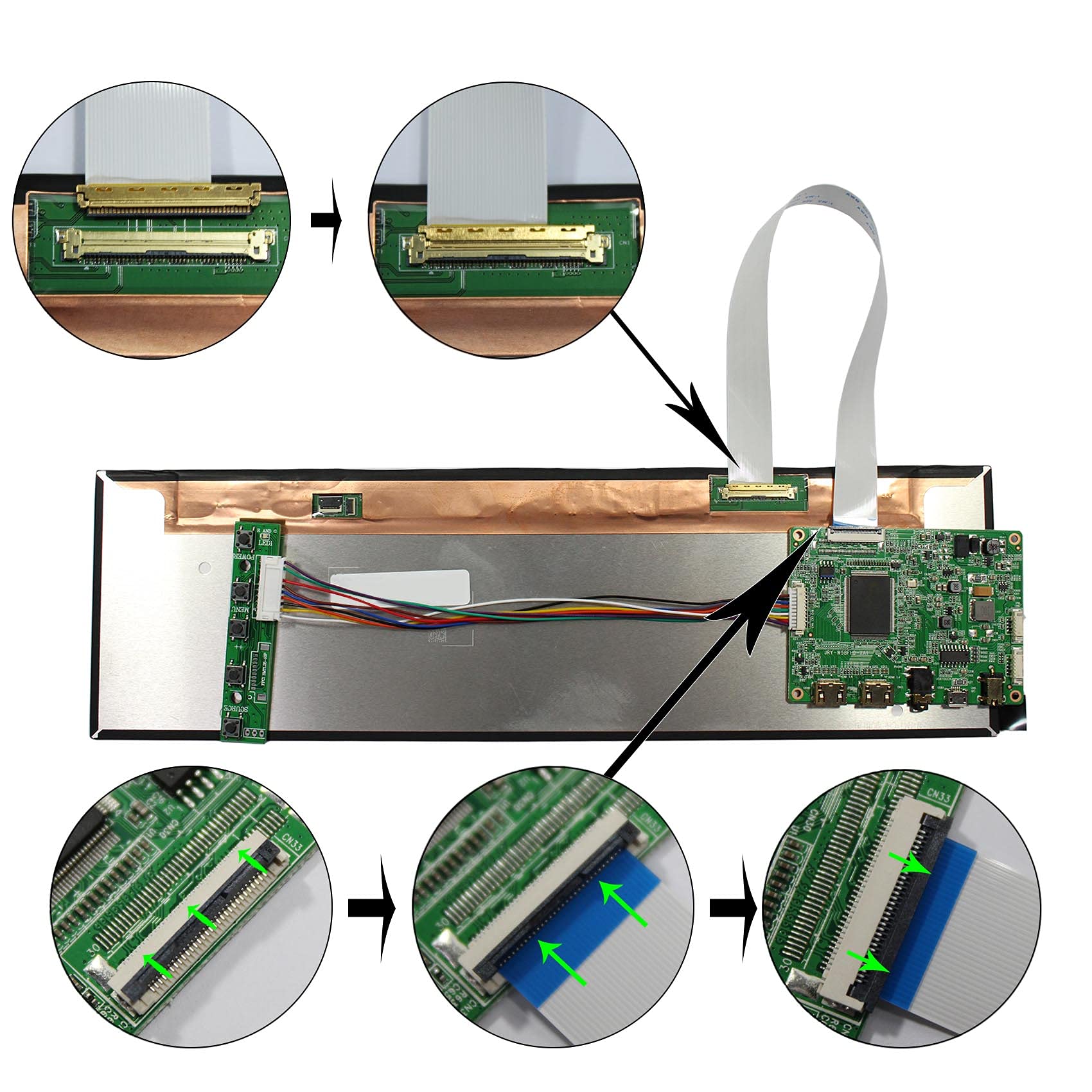

Plug & play Connecting cables and ports according to link picture details ,power on ,the keyboard LED light will be green ,then enter in signal cable,with correct resolution,the screen can work well .

Please ensure that the voltage of the power supply is operated within the specified data range. If the voltage is unstable or exceeds the specified voltage range, it may cause the board to emit smoke. In addition, Pls ensure that the board is used in an insulated environment to avoid short circuits.
